Aja og-4k2hd (og-4k2hd)


Aja og-4k2hd (og-4k2hd)
Aja og-4k2hd
Abb. kann vom Original abweichen.
Artikelnummer:
HDUBAJAOG4K2HD
Hersteller:
AJA
AJA Video Systems, Inc., 180 Litton Drive, Grass Valley, CA 95945, USA, +1 530 274 2048, info@aja.com, Importeur: ComLine GmbH Value Added Distribution, Lise-Meitner-Straße 16, 24941 Flensburg, Deutschland, +49 461 77303-300, info@comline-shop.de
Herstellernummer:
OG-4K2HD
EAN:
3059964
Im Strohmedia.de Online-Shop, günstig kaufen
Strohmedia
Aja og-4k2hd (og-4k2hd)
OG-4K2HD

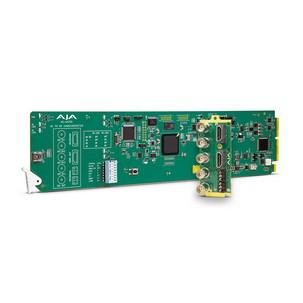

openGear 4K/UltraHD-SDI to 3G-SDI Down-Converter with DashBoard support


OG-4K2HD is an openGeard card that down-converts professional 3G-SDI 4K/UltraHD signals to HD resolution using AJA's high-quality scaling for cost-effective monitoring and conversion. OG-4K2HD's HD-SDI and HDMI outputs are live simultaneously, producing fantastic-looking HD images for on set monitoring or direct-to-air broadcast.

OG-4K2HD supports high frame rate (HFR) 4K/UltraHD inputs at 50 and 60fps and converts to HD outputs at 50 and 60fps for accurate viewing. OG-4K2HD's configuration options allow extraction of an HD resolution image from the 4K input to provide a one-to-one pixel image for 4K focus checks on HD displays.

Designed for use in high-density openGear's 2RU frames including AJA's OG-3-FR 2RU frame, new DashBoard Software support on Windows ® , macOS ® and Linux ® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

Features
•   openGear compatible card
•   4K (4096x2160) and UltraHD (3840x2160) support
•   Downconversion for supporting 4K on HD-SDI and HDMI devis
•   Simultaneous HD-SDI and HDMI output
•   Controlled by DashBoard network control software
•   Aspect ratio conversion from full 4K to HD
•   Supports up to 4K/UltraHD 50/60fps high-framerate input formats
•   Use with openGear 2RU frames including AJA's OG-3-FR frame
•   Five year warranty

Real time downconversion
OG-4K2HD uses real time prossing and AJA's high-quality scaling algorithms to downconvert professional 4K or UltraHD signals using 4× SDI connections to HD resolution, producing fantastic-looking HD images for on set monitoring or direct-to-air broadcast.

Simultaneous HD-SDI and HDMI outputs
OG-4K2HD's HD-SDI and HDMI outputs are live all the time, allowing use of both professional SDI monitors as well as low-cost HDMI monitors simultaneously. No matter what monitors you have on hand, OG-4K2HD can use them for on the spot 4K viewing.

High frame rate support
Many 4K productions are opting for higher frame rates of 50 and 60fps. OG-4K2HD supports high frame rate (HFR) 4K inputs and converts the HD output to a matching frame rate for accurate viewing so what you shoot is what you see.


OG-4K2HD can be configured to extract an HD resolutionnter cut from the 4K input. This provides a one-to-one pixel image that can be used to check focus on 4K shoots without the need for a full 4K monitor.

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power sourin the event of a primary power failure.

Ethernet Acss
A standard Ethernet connection allows the frame to be acssed via the Dashboard application for overall frame communication. Optional per-card Ethernet acss can be installed in the frame for advand communication with compatible openGear cards.
