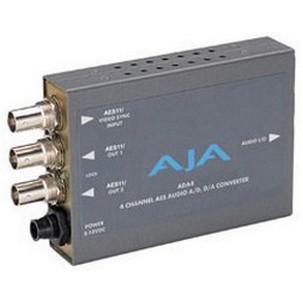

4-Channel Bi-directional Audio A/D and D/A Converter
The ADA4 is a 4 channel converter which can be configured as a 4 channel A/D, a 4 channel
D/A, or 2 channel A/D and 2 channel D/A. The ADA4 can acpt a Wordclock or video sync/color black refereninput for synchronization. Refereninput and synchronization is automatic. Audio levels are configurable via dipswitch control.

Features:
• 4 Channel AES Audio Converter
• 4 Channel Baland Analog Audio I/O
• Baland AES I/O
• Supplied XLR breakout cable
• Wordclock/Video ReferenI/O
• Dipswitch configuration
• 5-18VDC Power
• 5 year warranty

Specifications:
• Analog Audio I/O: Baland, XLR
• AES Audio I/O: Baland 110 ohm, XLR
• Audio Levels: +24dbu, +18dbu, +14dbu (Full Scale Digital)
• Audio Converters: 24 bit, 48/96 KHz
• User Controls: (External Dipswitch)
- Channel 1/2: A/D, D/A
- Channel 3/4: A/D, D/A
- Audio Level: Pro/Consumer
- Audio Level: High/Low
• Size: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
• Power: +5-18VDC, 3 watts. Requires Power Supply
