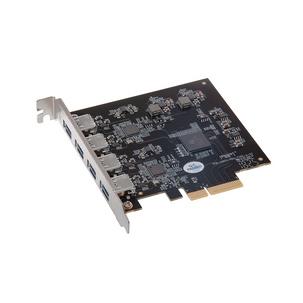

Sonnet allegro pro usb 3.2 pcie card (4x10gb charging ports) (usb3-pro-4p10-e)
|
Allegro Pro USB 3.1 PCIe
Professional 4-Port SuperSpeed+ USB 3.1 Gen 2
Charging PCIe Express card with dual 10Gb controllers.
Key Features
• SuperSpeed+ 10Gbps USB Ports — Adds four 10Gbps USB-A ports to your Mac Pro, Windows PC, or Linux(1) computer with PCIe slots; or Thunderbolt to PCIe card expansion system
• Dual USB 3.1 Gen 2 Controllers — Support data transfers at up to twi as fast as USB 3.0 and USB 3.1 Gen 1, and boost data transfer speeds between connected drives
• Powered Ports — Supports USB bus-powered SSD, SSD RAID, and hard drive devi s with up to 7.5W power per port
• Supports Charge & Sync — Supports USB 3.0 charging port handshake, and will simultaneously sync and charge iPads and other devi s that support USB 3.0 charging at 1.5A per devi br> • Protected Power Delivery — Independent power regulation isolates each port to prevent cross-coupled power glitches that may cause accidental disconnects; resettable devi overcurrent fuses protect the card and computer, and may be reset by a simple shutdown
• Optimized for Thunderbolt — Provides maximum performan over Thunderbolt
• Easy Installation — Quick and easy user installation into any available PCIe slot
• Broad USB Devi Support & Compatibility — Supports storage, hubs, and other USB-IF compliant USB devi s
2x eher performan as USB 3.0 and USB 3.1 Gen 1 connections
The fastest SSD-based USB 3.1 Gen 2 drives now available can transfer data at 800 MB/s—many are bus-powered, too. But, most desktop computers (including many new models) feature old-generation USB interfa s that can't support that performan and may not provide enough power to enable those bus-powered drives to function. Break through the bottleneck—install Sonnet's Allegro™ Pro USB 3.1 PCIe card in your Mac Pro ® tower, Windows ® PC, or Linux1 computer with PCIe slots; or Thunderbolt™ to PCIe card expansion system to support your fast USB drives at maximum performan
Two Gen 2 Controllers, Four USB-A Ports
Featuring two 10Gbps USB 3.1 Gen 2 controllers and four USB-A ports, the Allegro Pro USB 3.1 PCIe card supports the fastest USB drives available, yet provides the most common connection type for peripheral devi s.
The Speed and Power
Connected to a single USB 3.1 Gen 2 SSD RAID devi Sonnet's Allegro Pro USB 3.1 PCIe card supports data transfers up to 800 MB/s—transfers complete in half the time2 compared with using a USB 3.1 Gen 1 or USB 3.0 adapter card! Made possible through the use of dual controllers, with two connected drives, each port supports simultaneous 660 MB/s transfers. With four drives connected, each port supports simultaneous 300 MB/s transfers!
Sonnet Port Power Advantages:
Unlike ordinary USB adapter cards, the Allegro Pro USB 3.1 PCIe was designed with a focus on intelligent power management and delivery for powering attached drives through its ports.
|
Technischedaten
No Auxiliary Power Needed
Ordinary USB-A cards require the connection of a separate power connector. The Allegro Pro draws the power it needs from the slot it's installed in to power connected drives, enabling you to install the card in any compatible computer or Thunderbolt expansion chassis that doesn't have these power connectors available.
Independent Power Regulation for Each Port
Ordinary USB-A cards can provide poor power regulation through their ports. The Allegro Pro card protects each port from power glitches on adja nt ports—such as when a hard drive spins up after connection—preventing auto-disconnects of already-connected drives.
Resettable Fuses
Unlike ordinary USB-A cards, the Allegro Pro features a resettable fuse on each port to protect the card and your computer should a cable or peripheral fail. Resetting a tripped fuse is simple— just shut down and restart your computer.
Optimized for Thunderbolt
Got a Thunderbolt connection, but no PCIe slot? The Allegro Pro USB 3.1 PCIe card is ideal for use in Sonnet's Thunderbolt 2 and Thunderbolt 3 to PCIe card expansion systems, including Echo Express™ and xMac™ desktop and rackmount chassis. Now you can add four SuperSpeed+ USB-A ports to your computer without expansion card slots.
Perfect for the Extra Slot in Your Multi-Slot Thunderbolt Chassis
Have a multi-slot Thunderbolt 2 or Thunderbolt 3 to PCIe card expansion chassis with an open slot? Installing an Allegro Pro USB 3.1 PCIe card is an ex llent way to inexpensively add four 10Gb USB-A ports to your computer.
Easy Installation, Broad Devi Support
The full-height Allegro Pro USB 3.1 PCIe card installs easily into any PCIe x4 (mechanical) or larger slot. The Sonnet card features hot-pluggable and hot-swappable devi connection support with automatic devi configuration, and works with all USB-IF compliant USB peripherals.Tech Specs
Part No.
USB3-PRO-4P10-E: Allegro Pro USB 3.1 PCIe
Hardware
• Warranty: 2-year
• Form Factor: PCIe computer card
• Bus Interfa PCI Express 2.0 x4
• Peripherals Supported: Industry standard USB 3.1 Gen 2, 3.0, 2.0, and 1.1
• Bus Powered Peripherals Supported:
- HD, SSD, SSD RAID
- Up to 7.5W per port for operation or charging
• Cables Supported:
- USB-A 10Gbps
- USB-A 5Gbps
- USB-A 480Mbps
• Chipset: 2x ASMedia 1142
• RoHS Compliant: Yes
Package Contents
• Allegro Pro USB 3.1 PCIe adapter card
• Documentation
USB Support
• Standard: Complies with OHCI (Open Host Controller Interfa , EHCI (Enhan d Host Controller Interfa , and xHCI (eXtensible Host Controller Interfa standards
• UASP: USB attached SCSI protocol supported under
macOS 10.10 & 10.12+, Windows 10
• USB Charging: USB Battery Charging 1.2 compliant (up to 7.5W per port)
• Chipset Throughput: 20Gbps combined port throughput
• Number of Devi s Supported: Up to 62
• Hot Plug: Supports hot-pluggable and hot swappable devi connection
• Boot Support: No computers support booting at this time
Mac Compatibility
• Mac Pro ® 3,1, 4,1 or 5,1
• macOS 10.10.5, 10.12.6+1(not compatible with macOS 10.11)
• macOS Mojave compatible
Windows Compatibility
• Computer with PCIe slots
• Windows 10, 8.1, 7
• Windows Server 2016, 2012, and 2008 (64-bit Editions)
