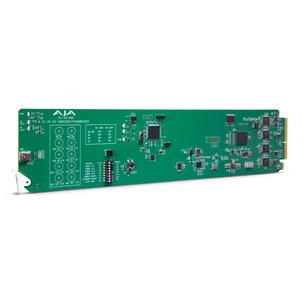

| Video Formats | - 1x 3 Gb SDI (level A or B)
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- 1x 1.5 Gb SDI
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 1x 270 Mb SDI
| | Video Input Digital | - 1x 3G-SDI BNC, SMPTE-259/292/424
| | Video Output Digital | - 1x 3G-SDI BNC, SMPTE-259/292/424
| | Audio Input Digital | | | Audio Output Digital | | | Audio Data Formats | | | Digital Audio Converters | | | Embedded Audio | - SDI embedded audio, 24-bit, 16-Channel
- SMPTE ST 272 (SD): 20-bit, 48 KHz synchronous
- SMPTE ST 299 (3G/HD): 24-bit, 48 KHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8-Channels embedded audio | | Embed Path Audio Latency | (Time measured between audio input and video output connector): - 1500 usec (SRC ON)
- 400 usec (SRC OFF)
| | Disembed Path Audio Latency | (Time measured between video input and audio output connector): | | User Interfa/strong> | - openGear DashBoard network control software via Windows, macOS or Linux
- External DIP switch
| | Size (w x d x h) | - openGear standard form factor, front slot and rear card. Two slots required for each card.
| | Weight | | | Power | - openGear frame compatible, 5.0 watts max per card
| | Environment | - Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
|
|
