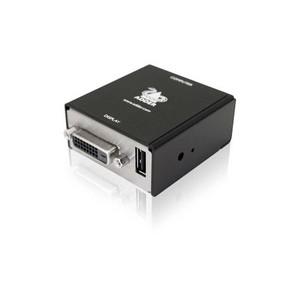

Adderview vga to dvi-d video converter (dva)


Adderview vga to dvi-d video converter (dva)

Abb. kann vom Original abweichen.
 DVA
 DVA
 DVA
Artikelnummer:
HDUBADDVA
Hersteller:
Adder
Adder Technology Ltd, Westbrook Centre, Milton Road, Cambridge CB4 1YG, United Kingdom, +44 (0)1223 727000, info@adder.com, Importeur: ComLine GmbH Value Added Distribution, Lise-Meitner-Straße 16, 24941 Flensburg, Deutschland, +49 461 77303-300, info@comline-shop.de
Herstellernummer:
DVA
EAN:
410044
Im Strohmedia.de Online-Shop, günstig kaufen
Strohmedia
Adderview vga to dvi-d video converter (dva)
ADDER DVA
VGA to DVI-D, USB powered, video converter


ADDER DVA is a high performanVGA to DVI-D video converter that transforms analog signals to digital. Plad in-line and USB powered this solution fits well with the AdderLink Infinity range of products. It converts VGA signals, up to 1920 x 1200 @ 60Hz, into a DVI standard equivalent.

• Analog to digital video conversion up to 1920 x 1200 (165MHz max. pixel frequency)
• EDID management to ensure clean operation
• Adjustment control for alignment, tone, sharpness and brightness
• Adjustment control for alignment, tone, sharpness and brightness
• USB powered with USB feed through

High quality VGA to DVI-D conversion
Adder DVA is a high quality VGA to DVI-D converter supporting most resolutions up to 1920 x 1200 @ 60Hz.

Auto calibration
Adder DVA auto calibrates for horizontal and vertical position. Manual adjustment is also available through the Virtual Control Panel (VCP) app, if required.

EDID management
EDID management is a critical element in VGA/DVI-D conversion, to ensure the correct settinare passed to the computer's graphics card.

USB powered with pass through
Adder DVA requires no separate power adapter and instead draws less than 300mA in operation from a spare USB port on the computer. A USB pass-through port is made available on the Adder DVA to allow a low-powered USB devito be connected; thus, the same total number of USB ports remain available for other uses.

Flash upgradeable
Adder DVA is flash upgradeable, allowing custom EDID adjustment for non-standard operations. Upgrades are achieved via the USB port.

Virtual control panel app over DDC-CI
Adder DVA is supplied with a Virtual Control Panel (VCP) app which allows brightness, tone and sharpness to be adjusted. Vertical and horizontal video alignment can also be adjusted, where nessary. The VCP app contains a test pattern to accurately display the changes. EDID management options can also be changed and the EDID's of the monitors can be displayed.

Specification

Features
DVI interfabr>VGA interfabr>
Industries
Air traffic Control - Air Traffic Management
Ideal for Audio Visual industry
Ideal for Banking industry
Ideal for Broadcast industry
Ideal for Command & Control industry
Ideal for Datantre industry
Ideal for Defenindustry
Ideal for Government/Federal industry
Ideal for Medical industry

Hardware compatibility
All computers with VGA output

VGA input
The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz with pixel frequencies up to 165MHz

DVI Output
Conforms to the DVI 1.0 standard. Resolutions supported to a maximum of 1920 x 1200 @ 60Hz with pixel frequencies up to 165MHz

Software compatibility for VCP app
Windows 7 and above with .NET v3.5

Computer connections
VGA DB15 x 1, USB type B x 1

Peripheral connections
DVI-D x 1, USB type A x 1

Physical design
Compact case, robust metal construction. 55mm/2.16" (w), 25mm/1.0" (h), 70mm/2.75" (d), 0.1kg/0.2lbs.

Power
USB powered - less than 300mA (1.5W)

Operating temperature
0 to 40ºC / 32 to 104ºF

Approvals

Downloads
