Atto thunderlink tlfc-3162-de0 tb3 (tlfc-3162-de0)
Technischedaten

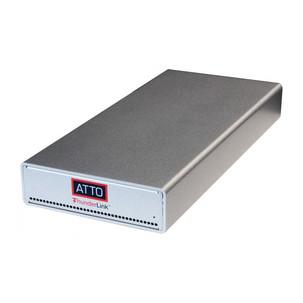

ThunderLink ® FC 3162 (SFP+)
40Gb/s Thunderbolt™ 3 (2-port) to 16Gb/s FC (2-port) ( includes SFPs )
The ATTO ThunderLink ® FC 3162 acts as an external Thunderbolt 3 to Fibre Channel adapter, connecting Thunderbolt enabled workbooks and mobile workstations to 16Gb/s Fibre Channel networks and storage devis. With dual channel configurations, the 16Gb/s Fibre Channel ThunderLink ® is an ideal solution providing support for failover and load balancing through ATTO's exclusive MultiPath Director. With the combined power of Thunderbolt 3 and ATTO's time-tested history with Fibre Channel users can achieve the highest I/O and data throughput for advand video and acss to IT applications.
• ATTO has over 20 years of experiendeveloping high performanand reliable Fibre Channel storage connectivity solutions. ATTO ThunderLink ® ™ Fibre Channel products provide creative professionals using Thunderbolt 3 enabled hosts, cost effective acss to Fibre Channel networks and storage not previously available using FireWire or USB. The integrated family of ThunderLink ® products boasts an extensive list of customer design wins andrtifications with respected industry partners.
• All ATTO Thunderbolt product utilize Advand Data Streaming (ADS™) Technology which maximizes CPU prosses to deliver smooth and reliable data transfers and the highest consistent performanas well as our easy to use ConfigTool™, an intuitive GUI, which enables management, monitoring and configuration.
• Two 16Gb SFP+LC optical modules included
Specifications
• Able to achieve maximum line rate of Thunderbolt 3
• Two optical SFP+ LC modules included
• US model: includes 110V power cord
• EU model: includesE 7/7 (SHUKO) power cord and BS 1363 UK10 power cord
• Dual port 40Gb/s Thunderbolt 3 with DisplayPort and devidaisy-chain support
• Exclusive Advand Data Streaming (ADS™) Technology
• Auto negotiation to 16Gb, 8Gb, 4Gb devis
• Supports Windows ® 10, 8.1, 7 (Planned support for Mac ® platforms)
• ATTO ConfigTool™, a Graphical User Interfa for customized performansettinbr> • 3-year standard product warranty
• RoHS Compliant
• Kensington Security Slot for additional security
