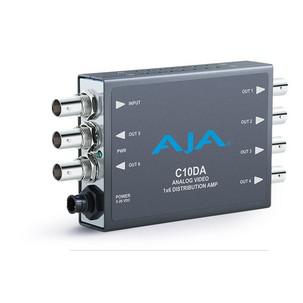

Aja c10da (c10da-r0)


Aja c10da (c10da-r0)
Aja c10da (c10da-r0)
Abb. kann vom Original abweichen.
Artikelnummer:
HDUBAJAC10DA
Hersteller:
AJA
AJA Video Systems, Inc., 180 Litton Drive, Grass Valley, CA 95945, USA, +1 530 274 2048, info@aja.com, Importeur: ComLine GmbH Value Added Distribution, Lise-Meitner-Straße 16, 24941 Flensburg, Deutschland, +49 461 77303-300, info@comline-shop.de
Herstellernummer:
C10DA-R0
EAN:
0892448000670
Im Strohmedia.de Online-Shop, günstig kaufen
Strohmedia
Aja c10da (c10da-r0)
C10DA
Analog Video 1x6 Distribution Amplifier


The C10DA is a 1x6 Analog Distribution Amplifier with support for NTSC and PAL offering the ability to distribute multiple copies of the incoming signal or extend content of composite video with gain adjustment to compensate for long cable runs where needed. The C10DA can also be used to DA Tri-Level sync in an HD facility when a sync signal is fed externally into the Video Input.

Features
• Compact 1 x 6 Analog Distribution Amplifier
- NTSC
- PAL
•   May be used to distribute tri-level sync when a syync signal is fed into the Video Input for HD workflows
•   Low Cost
•   5 year warranty

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentallyaus Kunststoffll loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advand replament policy. If a replament is nessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad ® and iPhone ® is available now in the Apple iTunes ® Store.
Technischedaten
Formats

  • NTSC
  • PAL
  • Bi-level Referenbr>
  • Tri-level Referenbr>
  • AES3-id
  • LTC
Inputs1 Analog, Differential, 1 x BNC
Outputs 6 Analog, 6 x BNC
Termination75 Ohms or nonterminated
Video Bandwidth   0 - 6 MHz +/- 0.1dB
Gain-3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB
Diff Gain0.15%, not load dependent
Diff Phase0.1 degree, not load dependent
H/V Tilt< 0.1%
Response Variation< 0.1dB 1 to 6 loads
CouplingDC
Max Common Mode Signal10Vp-p
Return Loss> 35dB to 6 MHz all inputs and outputs
Output Isolation>40dB
User Controls
  • External Dipswitch
  • Termination
  • Gain
Size (w x d x h)5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
Weight0.8 lb (0.3 kg)
Power5VDC Regulated, 2 Watts, power supply required, included withaus Kunststoffrchase
Environment
  • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
  • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
