ADDERLink X-USB PRO
Transparent USB, Audio and VGA extension up to 300m
Adder's next generation USB, video and audio extender delivers sharp, bright and high resolution video images and high quality audio at distans up to 300m (1000ft) over a single CATx cable.
The ADDERLink X-USB PRO has been designed to provide industry-leading video clarity, compatibility and high rack densities
Video
VGA resolutions of 1920 x 1200 are achievable at 300 meters (1000ft). This is achievable by including a variable noise filter which overcomes issues introdud by increased gain as the length of the cable increases over 200 meters.
Video compensation
A Multi-pole compensation technique is used enable superb video quality at maximum distanover a single cable. For the first time, adjustment can be made for cable type and cable length with further color skew compensation and gain adjustment to ensure crystal clear images, all from the reiver's keyboard.
Local feed through port
A local feed through port is provided for audio and video so a local console can be used.
USB powered Transmitter
The transmitter is powered via it's USB port to reduthe need for external supplies. There is an option for an external power supply if the USB port has insufficient power.
Dual user configuration
Two X-USB PRO units can be linked to a single computer so two users can acss the system. When using two sets of X-USB PRO modules to allow two users to acss a single computer the arbitration between the users is handled by the USB sub-system of the computer. This means that both users can control the computer at exactly the same time and the resulting keyboard and mouse influens will be an amalgam of the two inputs.
Emulated 2 page DDC EDID
This extender supports full two page DDC EDID. Some high performanvideo cards require the two page data or they will not deliver optimal performan
USB support
The X-USB extends USB 2.0 (low and full speed) allowing all USB compatible acssories (including isochronous devis) to be extended. The reiver unit has a built in 4 port USB hub to enable a complete desktop to be located remotely, including a keyboard, monitor, mouse, disk drive, flash memory stick, webcam, and any other devithat wouldally be plugged into your computer's USB port.
Audio
Audio transmission delivers CD quality stereo audio for speakers.
Rack options
Both transmitter and reiver units can be used stand-alone or up to 16 units can be mounted into a 2U chassis.
Specifications
Video resolutions
All resolutions up to 1920x1200 @ 60Hz, including 1600x1200, 1080p, 1680x1050.
Extension distan
200 meters using CAT5 Trunk cable
250 meters using CAT5e Trunk cable
300 meters using CAT6 Trunk cable
300 meters using CAT7 Trunk cable
200 meters using CAT7a Patch cable
Skew compensation
62ns de-skew with 2ns resolution (1/4 pixel at 1600x1200).
USB devis supported
Supports all USB 1.1 devis (full speed and low speed modes) and USB 2.0 devis that will run in low speed or full speed USB 1.1 modes.
O/S compatibility
All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.
|
Technischedaten

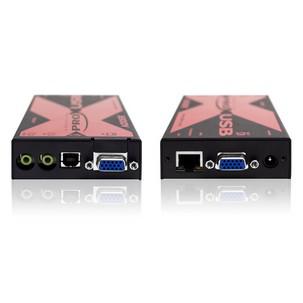

Connectors (local computer-end unit)
1 x USB type B connector
2 x 15-pin high-density D-type female connector (blue)
2 x 3.5mm audio jack (light green)
1 x RJ45
1 x 2.5mm DC jack for optional power adapter (only required for video only applications)
Audio (end to end)
2 channel 16 bit Audio @ 44.1 KHz
THD+N typically -80dB at 1kHz
SNR typically 85dB at 1kHz
Connectors (remote console-end unit)
4 x USB type A connectors
1 x 15-pin high-density D type female connector (blue)
1 x 3.5mm audio jack (light green)
1 x RJ45
1 x 2.5mm DC jack for power adapter
Physical (Local and Remote units)
Remote -162mm x 26mm x 75mm, 430g
Local - 122mm x 26mm x 75mm, 350g
Fits into one slot width in the X-Series rack mount chassis (16 units fit into 2U of rack spa
Power supply
100 - 240VAC 50/60Hz input - 5V - 12W output
Operating temperature
0 - 40 deg C / 32 to 104 deg F
Approvals
Order Codes
X-USBPRO-XX
XX= Mains Lead Country Code:
UK = United Kingdom
US = United States
EURO = Europe
AUS = Australia
