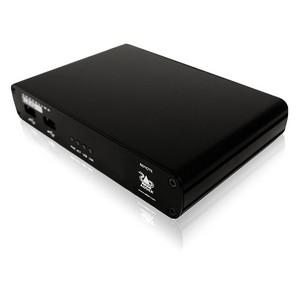

ADDERLink XD150
DVI video extender with transparent USB2.0 over a single CATx cable
ADDERLink XD150 is a high performanKVM (Keyboard, Video, Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station whilst maintaining the original user desktop experien
Features:
• 150 meter extension distanfor a single 1920 x 1080 screen
• 100 meter extension distanfor a single 1920 x 1200 screen
• Transparent USB 2.0 hi-speed link for keyboards, mi tablets, touch screens, mass storage and other common USB devis
Perfect digital video, real time control
The video extension system is uncompressed, where by every pixel of every frame are sent without loss and in real-time.
Single CATx extension cable
Video, USB 2.0, audio and RS232 signals all pass along a single CATx extension cable.
Up to 150 meter extension distan/strong>
Distanis dependent on the monitor resolution, cable type and number of connection breaks for patch panels and wall plates. See the table on the datasheet for details.
Transparent USB 2.0
The transparent USB 2.0 link supports most common USB devis such as mi keyboards, touch screens, graphic tablets, jog shuttles, joysticks and mass storage devis. Isochronous devis such as web cams and headsets can also be used.
Plug and Play
Installation is straightforward and there is no need for extra drivers or software to be installed.
Locking power connectors
Locking 3 Pin DC jack with 2 power adaptors included.
CD quality analog audio
CD audio quality (stereo channel 16 bit sampled at 44.1kHz) is available to transfer stereo audio from local to remote for Line Out.
Intelligent operation
The extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer. A KVM switch mode is also provided for improved compatibility with KVM equipment. The whole system is flash upgradeable from the computer end for future compatibility.
RS232
RS232 can be passed between the units to a maximum baud rate 115K2 via the options port. Adder's RC4 remote key switch is also supported.
19" rack mounting kit
An easy-acss rack mount kit is available for neat mounting of two units in 1U of rack spa
Intelligent USB hub
The remote unit has an in-built 4-port USB hub to enable several USB devis to be connected.
Specifications
Hardware compatibility
All computers with DVI, USB and audio.
DVI Interfa/strong>
The system supports resolutions to a maximum of 1920 x1200@60Hz.
USB 2.0
Supports USB 2.0 devis (low, full and hi-speed). Isochronous devis are supported.
Software compatibility
All known operating systems.
Computer connections LOCAL transmitter
DVI , audio 3.5mm in, USB type B, RS232 10p10c options port, mini USB for firmware upgrade.
Peripheral connections REMOTE reiver
DVI, audio 3.5mm out, USB type A x 4, RS232 10p10c options port.
Physical design
Compact case, robust metal construction. 169mm/6.65" (w), 31mm/1.22" (h), 120mm/4.8" (d), 0.6kg/1.3lbs.
Power
3 Pin Locking DC jack (2 x power adapter included),100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter.
|
