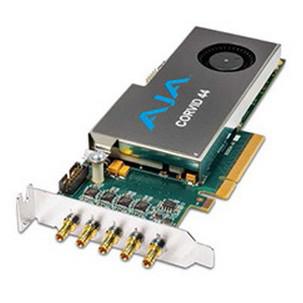

Low-profile 8-lane PCIe, 4 x SDI independently configurable, no cables included
Corvid 44
Flexible Multi-format I/O
Increase your video and audio I/O capacity with Corvid 44. Configure each SDI connection individually as input or output and mix formats for up to 4 HD or SD channels on a single card. As demand rises for higher resolutions, combine SDI connections into a single 4K/UHD channel, allowing incredible flexibility and futureproofing.
Multi-stream, Multi-format PCIe I/O Card
Corvid 44 allows AJA Developer Partner applications to acss up to four simultaneous input and output streams on a single PCIe card, making it perfect for a wide variety of medium-density applications.
Flexible Multi-format I/O
Each BNC connection on Corvid 44 can be set programmatically as either an input or output and each can support a different video format, provided all format use the same clock timing. Connections can also be linked together to support Dual Link or 4K/UHD formats.
High Frame Rate support
Corvid 44 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. Working at frame rates of 48p, 50p and 60p ensure smooth motion for the most demanding 4K and UHD applications.
High frame rates are not limited to 4K and UHD with Corvid 44, multiple 720p and 1080p HD inputs and outputs are also supported at frame rates up to 50p and 60p, making Corvid 44 extremely flexible for your current and future needs.
LTC and Refereninput
Corvid 44 provides one external, switchable LTC/Refereninput connection on the back of the card. A second LTC input is available on an internal header for providing additional referento Corvid 44.
RS-422
A built-in RS-422 connection is available either as an external connection on the full-sized Corvid 44 or as an internal connection on the low-profile Corvid 44. RS-422 allows control of external devis for frame accurate ingest and layoffs.
Features at a Glan/strong>
• PCIe Express Gen 2.0 8-lane
• Up to four independent channels 3G, HD, SD-SDI I/O
• All SD/HD/2Kx1080/4K video formats
• 3G input/output for High Frame Rate (HFR) support.
• 8/10-bit YCbCr and 12- bit RGB frame buffer formats
• 2 independent Mixer/Keyer widgets.
• 4 independent 16-ch 48kHz SDI embedded audio I/O engines
• Analog Color Black or HD Tri-Level Sync
• 3-year warranty
Channels must use the same master clock. Eg, 29.97 and 59.94
Prossing
• 4 - Frame Stores (In or Out)
• 4 - Color SpaConverters
• 2 - Mixer/Keyer widgets
• 4 - 1D LUTs
• 4 - Dual Link In
• 4 - Dual Link Out
• 4 - Independent 16-ch embedded audio engines
Technische Spezifikationen
Videoformate
4K
• 3840 x 2160P 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
• 4096 x 2160P 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
2K
• 2048 x 1080P 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
• 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
HD
• 720p 50, 50.94, 60
• 1080i 25, 29.97, 30
• 1080PsF 23.98, 24, 25, 29.97, 30
• 1080P 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
SD
• 525i 29.97
• 625i 25
Videoausgang, digital
• 3G-SDI BNC
Digitaler Audioeingang
• 16-channel 24-bit SDI embedded
• 48kHz synchronous
Digitaler Audioausgang
• 16-channel 24-bit SDI embedded
• 48kHz synchronous
|
