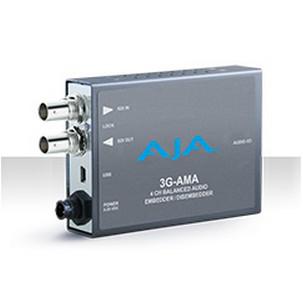

| Einganformate | 1 x 3Gb SDI (level A or B) - 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 2048x1080psf 23.98, 24, 25, 29.97, 30
- 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 1920x1080psf 23.98, 24, 25, 29.97, 30
- 1920x1080i 25, 29.97, 30
- 1280x720p 50, 59.94, 60
1 x 1.5Gb SDI - 2048x1080p 23.98, 24, 25, 29.97, 30
- 2048x1080psf 23.98, 24, 25, 29.97, 30
- 1920x1080p 23.98, 24, 25, 29.97, 30
- 1920x1080psf 23.98, 24, 25, 29.97, 30
- 1920x1080i 25, 29.97, 30
- 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1 x 270Mb SDI |
| Ausganformate | Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.
Video Latency (time measured between video input and video output connector): - SD (270 Mb) = 17.2 usec
- HD (1.5 Gb) = 6.3 usec
- 3G level A = 3.2 usec
- 3G level B = 6.1 usec
|
| Audio Inputs and Outputs | - Baland Analog Audio, 1 x 25 pin D female connector on converter, 4 channels in, 4 channels out.
- Breakout cable provided with 1 x 25 pin D male connector:
- 4 x XLR female input breakout connectors (AES3 110 ohm)
- 4 x XLR male output breakout connectors (AES3 110 ohm)
Digital Audio Converters
Embedded Audio - SMPTE 272M (SD): 20-bit, 48KHz synchronous
- SMPTE 299M (3G/HD): 24-bit, 48KHz synchronous
- Incoming embedded audio can be passed, removed, or overridden.
- Up to 16 channels supported.
NOTE: 2048x1080p/psf 29.97 and 30 formats support a maximum of 8 channels embedded audio.
Embed Path Audio Latency (time measured between audio input and video output connector):
Disembed Path Audio Latency (time measured between video input and audio output connector):
Analog Audio Levels Configured via MiniConfig software: - Pro 1: 0 dBfs = +24 dBu
- Pro 2: 0 dBfs = +18 dBu
- Pro 3: 0 dBfs = +15 dBu
- Consumer 1: 0 dBfs = +12 dBu
|
