Aja v2analog (v2analog-r0)

Technischedaten

• HD/SD-SDI zu Analog Konverter
• HD/SD-SDI Eingang
• Komponente und Composite Ausgänge
• 10-bit Qualität zum Knallerpreis
• Konfigurierbar über DIP Schalter
• Update und Konfiguration auch über USB
• 5 Jahre Garantie

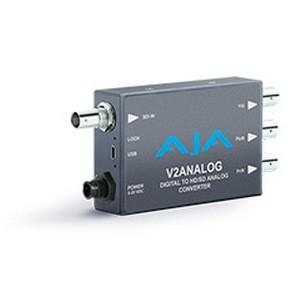

V2Analog
HD/SD-SDI to Component/Composite Analog Mini-Converter

V2Analog is a high-quality, cost-effective digital to analog video converter that's an ideal solution for integrating analog equipment such as monitors and tape decks into digital workflows. V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions with a full 10-bit data path. V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.

Breakthrough priperforman/strong>
V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions. The full 10-bit data path ensures a quality conversion at an extraordinary pri

V2Analog uses AJA's industry-leading conversion technology to ensure the highest quality images for the most demanding situations.

Extensive format support
V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow.

Highly portable
V2Analog's low power consumption and compact size make it perfect for on set use, where it can run off battery power, as well as throughout a facility or AV installation for on-the-spot conversion.

Configure via USB/MiniConfig or external DIP switches
AJA's free MiniConfig software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interfawith detailed information about input and output formats as well as all configuration parameters.

In addition, external DIP switches allow configuration of V2Analog for situations where computer acss isn't practical.

Features
• 10-bit AJA quality at a new breakthrough pribr> • Low power, compact size
• HD/SD-SDI input
• YPbPr/RGB Component or Composite output
• Configurable via USB and AJA MiniConfig software for Mac and PC
• Low power, compact size
• Uses 5-20VDC power (DWP-U-R1 universal power supply included)
• 5-year warranty
