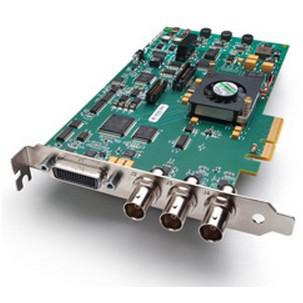

Aja kona lhe plus (kona-lhe+-r0)
HD / SD 10-bit Digital and 12-bit Analog PCIe Card (higher performanthan original LHe)
An Affordable Professional Card for Analog and Digital I/O
KONA LHe Plus offers a full host of professional no-compromise features: 10-bit or 8-bit uncompressed video, 2-channel AES digital audio and 8-channel SDI embedded digital audio, analog composite or s-video or SD/HD component video I/O, 2-channel baland analog audio I/O, and broadcast quality hardware down-conversion from HD to SD.
Connectivity
For SDI video, the KONA LHe Plus features one input and two outputs and can be configured independently for HD or SD. It offers Genlock input, and three BNCs which may be configured for analog video input and output (HD or SD). Also included is a 9-pin connector for RS-422 machine control. Because the KONA LHe Plus supports analog component HD input and output, devis with analog HD output, such as HDV decks and even game consoles, can be connected for a variety of workflows.
Broadcast-quality conversion
KONA LHe Plus features full 10-bit, broadcast-quality, motion-adaptive HD to SD down-conversion, and HD/SD 12-bit component analog output. Sinconversion is hardware-based, it's available all the time - during ingest or playback.
Extend your Connectivity with KL-Box-LH
The optional KL-Box-LH provides all the standard features of a cable for 1RU rack mounted I/O convenienand added connectivity in the form of additional BNC digital AES/EBU connectors and RCA audio monitoring jacks.
KONA LHe Plus Specifications
KONA LHe Plus
KONA LHe Plus
• PCIe 4-lane
Video Input
• Digital:
SD-SDI, SMPTE, 259M, 10-bits, BNC
HD-SDI SMPTE, 292/296, 10-bits, BNC
• Analog:
- Composite/S-Video (Y/C):
NTSC, NTSCJ, PAL 12-bit A/D, 2x oversampling
3 line adaptive comb filter decoding
- SD Component:
SMPTE/EBU N10, Betacam 525 line,
Betacam 525J, RGB
12-bit A/D, 2x oversampling
- HD Component:
YPbPr
12-bit A/D
- 1D LUT Support (PC)
Video Formats
• 525i 29.97
• 625i 25
• 720p 23.98 (PC)
• 720p 24 (PC)
• 720p 25 (PC)
• 720p 29.97 (PC)
• 720p 30 (PC)
• 720p 59.94
• 720p 60
• 1080i 25
• 1080i 29.97
• 1080PsF 23.98
• 1080PsF 24
• 1080PsF 25 (PC)
• 1080PsF 29.97 (PC)
• 1080PsF 30 (PC)
|
Technischedaten
Video Output
• Digital:
SD and HD-SDI, SMPTE-259/292/296
• Analog:
- Composite/S-Video (Y/C):
NTSC, NTSCJ, PAL
12-bit D/A, 8x oversampling
- SD Component:
SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
12-bit D/A, 8x oversampling
- HD Component:
YPbPr, RGB
12-bit D/A, 2x oversampling
Audio
• Digital:
24-bit SDI embedded audio, 8 channel, 48kHz
24-bit AES audio, 2 channel, 48kHz
16-bit capable
• Analog:
24-bit A/D and D/A, 2 channel baland
XLR, 48kHz
+24dbu Full Scale Digital
+/- 0.2db 20 to 20kHz frequency response
Down-Conversion
• Hardware 10-bit
• Anamorphic: full-screen
• Letterbox: image is redud with black top and bottom added to image area with the aspect ratio preserved
• Crop: image is cropped to fit new screen size
ReferenInput
• Analog Color Black (1V) or Composite Sync (2 or 4V) Non terminating, Looping, 75 ohm on KLH-Box, terminated on supplied breakout cable
Machine Control
• RS-422, Sony 9-pin protocol
