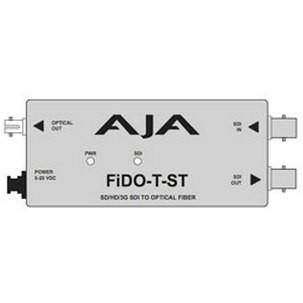

Aja fido-t-st (fido-t-st)
Technischedaten
• SDI auf Fiber
• ST Steckverbinder für Fiber
Single-channel SD/HD/3G SDI to Optical Fiber (ST connector) with looping SD/HD/3G SDI output
(Auslieferung erfolgt ohne Netzteil - Dieses muß separat bestellt werden: VZ-305900 / DWP-U)
FiDO is a family of SDI/Optical Fiber converters. FiDO allows the transport of SDI, HD-SDI, and 3G SDI over distans up to 10km using standard single- mode fiber optic cable, with your choiof LC, ST, or SC connectors, depending on the converter model. FiDO converters meet all relevant SMPTE specifications and are rugged, versatile, and suitable for indoor or outdoor use.
With 9 models, FiDO offers unmatched flexibility and cost efficiency. FiDO dual channel models allow the conversion of 2 channels-perfect for 3D, dual- link SDI, or 2 completely independent SDI channels (for example, SD, HD, and 3G can be mixed in any combination). Also, FiDO converters offer electrical isolation useful for eliminating ground loop problems.
FiDO converters come in a compact, low-profile enclosure for use in tight spas around and behind equipment racks, trucks and crowded facilities.
Features
• Transport of SDI, HD-SDI, and 3G HD-SDI over single mode optical fiber
• Auto-detection of video format
• All SDI Ancillary data including embedded audio is passed
• LC, ST OR SC fiber connectors
• Simplex or duplex models available
• All inputs, either SDI or fiber, are equalized and re-clocked
• ASI compatible
• Useful for eliminating ground loop problems
• 5-20VDC power supply (sold separately)
• 5 year warranty
FiDO Specifications
Formats
• 3Gb, 1.5Gb, 270Mb, Auto Select
Video Inputs and Outputs
• SDI (SMPTE 259/292/296/424), 2x BNC
• 1x Single mode optical fiber, LC connector (FiDO-R, FiDO-T)
• 1x Single mode optical fiber, ST connector (FiDO-T-ST, FiDO-R-ST)
• 1x Single mode optical fiber, SC connector (FiDO-T-ST, FiDO-R-ST)
• 2x Single mode optical fiber, LC connectors (FiDO-2R, FiDO-2T, FiDO-TR)
Cable Equalization (BNC inputs, 1694 coax)
• 270mb, 400m
• 1.5Gb, 200m
• 3Gb, 140m
Input/Output Return Loss (BNC)
• >15db, 270Mb - 3Gb
Optical Outputs
• Wavelength: 13 10 nm
• Output Power: -2dBm typical
Size
• 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)
Power
• +5-20 VDC
• 1.5 watts (FiDO-T, FiDO-R, FiDO-T-ST, FiDO-R-ST, FiDO-T-SC, and FiDO-R-SC)
• 2.5 watts (FiDO-2R, FiDO-2T, FiDO-TR)
• Requires Power Supply (AJA power supply model DWP or DWP-U recommended)
