Adderlink xd150fx-mm extender (multi-mode) (xd150fx-mm)

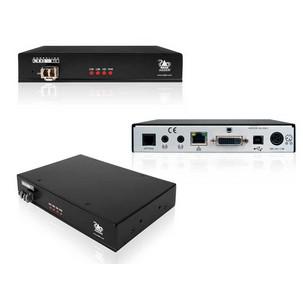

ADDERLink XD150FX
DVI video extender with USB2.0 over a single duplex fiber cable at up to 4km
ADDERLink XD150FX is a high performanKVM (Keyboard, Video, Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station whilst maintaining the original user desktop experien
• Resolutions up to 2560 x 1600 @60Hz
• 150m extension distanfor OM2 multi-mode fiber
• 4km extension distanfor a single mode fiber. 400m extension for OM4 fiber
• USB2.0 Hi-speed for mass storage devis
• USB2.0 (Low, Full, High speed) for keyboard, mouse, tablet and touch screen
• Bidirectional analog audio (Line in/out with microphone & headphone support)
• RS232 with RTS/CTS flow control
Perfect digital video, real time control
The video extension system is visually lossless with no visible artefacts or latency allowing you to bertain of quality and control whilst seperated from your computer.
Single duplex LC fiber cable required
Video, USB2.0 and audio all pass along a single duplex LC fiber cable.
Flexible extension distans from 150 meters to 4km
The unit is fitted with SFP cages allowing different types of fiber to be utilised. Distanis dependent on the cable type and fiber module. See table below for details.
USB 2.0
Enables connection of any USB human interfadevifrom miand keyboards through to touch screens, graphics tablets, jog shuttles, joysticks and 3D explorers. Mass storage devis and isochronous devis such as webcams and headsets can also be used.
EDID management
The extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
REST API
A REST (REpresentational State Transfer) API is available with all functionality to which authorized 3rd party control systems can interfa
Web interfacontrol
The XD150FX can be controlled and monitored via a web interfa Temperature and status are viewable and each function can be individually controlled. Web interfasecurity is by HTTP digest authentication (RFC 2617) with username and password as requested information.
Plug and Play
The AdderLink XD150FX extender is delivered in a zero config state so you can plug in the units and start working with them straight away. There is no need for drivers or software to be installed.
Bidirectional CD-quality analog audio
The unit delivers CD-quality stereo audio (24-bit sampling at 96kHz) is available to transfer audio between local and remote. A microphone and headphones are also supported.
Specification
Hardware compatibility
All computers with DVI, USB and audio.
DVI Interfa/strong>
The system supports resolutions to a maximum of 2560 x 1600 @ 60Hz.
USB 2.0
Supports USB2.0 devis (low, full and high speed). Isochronous devis are supported.
Software compatibility
All known operating systems.
Connections
Transmitter (TX):
DVI, Audio 3.5mm x 2, USB type-B, Options port (6p6c), Ethernet port (8p8c), Peripheral connections.
Reiver (RX):
DVI, Audio 3.5mm (line in and out), Audio 3.5mm (mic in and headphones), USB type-A x 4, Options port (6p6c).
Physical design
Compact case, robust metal construction. 169mm/6.65" (w), 31mm/1.22" (h), 120mm/4.8" (d), 0.6kg/1.3lbs.
|
Technischedaten
Power
3 Pin Locking DC jack (2 x power adapter included),100-240VAC 50/60Hz, 0.7A, input to power adapter, 12VDC 18W output from power adapter.
Operating temperature
0 to 40ºC / 32 to 104ºF.
Approvals
Features
Ideal for CAT5/6/7 cable - see datasheet for recommendation
SUN compatible
PC compatible
Mac compatible
DVI interfabr>USB interfabr>RJ45 interfabr>Audio connectivity
Industries
Air traffic Control - Air Traffic Management
Ideal for Audio Visual industry
Ideal for Banking industry
Ideal for Broadcast industry
Ideal for Command & Control industry
Ideal for Datantre industry
Ideal for Defenindustry
Ideal for Government/Federal industry
Ideal for Medical industry
