Adderview 4 port usb2.0/vga/ audio kvm switch (av4pro-vga)

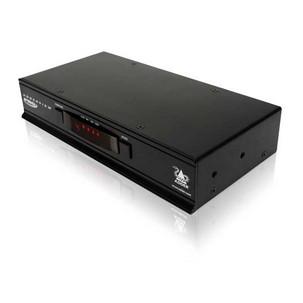

ADDERView 4 PRO VGA
Professional VGA, USB 4 port switch with USB True Emulation Technology.
Also Available: 4 port multi-head AV4PRO-VGA-Dual, AV4PRO-VGA-Triple, AV4PRO-VGA-Quad.
The ADDERView PRO is a professional grade KVMA switch delivering ultimate flexibility for users who wish to share a high resolution screen and modern USB peripherals between a multiplicity of computers.
The AV4PRO-VGA is designed to enable four computers to be controlled from a single high resolution KVM console using high definition analogue VGA video links. The switch makes use of Adder's True Emulation technology which enables USB HID devis to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhand keyboards and mi
Furthermore, the ADDERView Pro includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers.
Examples of switching flexibility on the AV4PRO-VGA. Diagrams show the switching of connected devis across all connected computers and the selection of all connected devis to a single computer.
High Definition VGA with extended profile DDC EDID
The ADDERView PRO features high resolution VGA video with extended profile DDC EDID. The extended DDC EDID profile ensures that the switched graphics card is always optimised to work with your screen. The VGA capabilities enable users to work at very high resolutions including WUXGA (1920 x 1200) or (1920 x 1440) for intensive applications such as media/graphic design or detailed medical imaging.
True Emulation USB 2.0 technology
The AV4PRO-VGA belonthe first KVMA range of switches to feature ADDER's advand True USB Emulation technology. Emulated USB provides an instantaneous and reliable switching action and makes keyboard hotkey and mouse switching possible. However, previous implementations have used only generic emulations and consequently have only been able to support the most basic keyboard and mouse features. Adder's revolutionary True Emulation technology overcomes this frustrating limitation by emulating the true character of the connected devis to all the computers simultaneously. This means that you can now use the extra function keys, wheels, buttons and controls that are commonly found on modern keyboards and mi With the AV4PRO-VGA, a whole new group of users can take advantage of the flexibility KVM switches have to offer. Users in Architecture, Graphic design, Post production, Animation etc. often need to use specialised interfadevis such as graphics tablets, 3D explorers, joysticks, and so on. The AV4PRO-VGA makes all this possible using Adder's True Emulation technology.
Independent simultaneous deviselection
Flexibility is key to the ADDERView PRO. The switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another. You can of course still switch all connected devis to any one of the connected computers as with any other KVM switch.
Channel selection options
The ADDERView PRO can be switched using selectable keyboard hotkeys, 3 button mior the front panel controls. Optionally, you can also use the RC4 remote switch to make your selection.These switching options allow you to rapidly reasign connected devis to any of the connected computers.
|
Technischedaten
Broad USB 2.0 Hi Speed devisupport
A vast range of USB devis can be connected to the ADDERView. From non standard human interfadevis to printers and scanners. This gives great flexibility. For example, you could be scanning a set of documents onto one computer whilst working on another and printing from yet another, all at the same time. The USB 2.0 switching action has been carefully engineered to ensure maximum computer reliability when connecting and disconnecting USB devis.
Options port for control, synchronisation and upgrade
An 'Options' port enables the AV4PRO-VGA to be remotely switched using simple ASCII codes. When the channel is switched, the same ASCII codes are echoed to the 'Options' port and so, by linking 'Options' ports, two or more units can be switched in synchrony to create a multi video head switching system. The port enables a 4 button switch unit (RC4) to be used with the ADDERView PRO. The same port can also be used to upgrade the firmware to guarantee that your hardware investment continues to deliver real value well into the future.
Specification
Features
• SUN compatibleSUN compatible
• PC compatiblePC compatible
• Mac compatibleMac compatible
• USB interfaUSB interfabr> • VGA interfaVGA interfabr> • Audio connectivityAudio connectivity
Industries
• Ideal for Broadcast industryIdeal for Broadcast industry
• Ideal for Medical industryIdeal for Medical industry
Hardware compatibility
All computers with USB interfas
Software compatibility
Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.
Computer connections at switch
USB2.0 type B, Hi Res VGA (up to 4 per connection), 3.5mm stereo jack
Local KVM console connection Video
Video: VGA (Dual x 2, Triple x 3 or Quad x 4)
Keyboard/Mouse: 2 x USB type A
Switched USB: 2 x USB2.0 type A
Audio: 3.5mm stereo jack
Other Connections: Options (flash upgrade, sync with other AV4PRO-VGA and RS232 triggered power switches): Modular 10P10C
Physical design
1U high metal case 233mm (w), 115mm (d), 44mm (h)
Power
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter
Operating temperature
0 - 40 deg C (32 to 104 deg F)
Approvals
Order codes
AV4PRO-VGA-XX
XX= Mains Lead Country Code:
UK = United Kingdom
US = United States
EURO = Europe
AUS = Australia
