Adderlink av digital hdmi extender (aldv100p) (aldv100p)

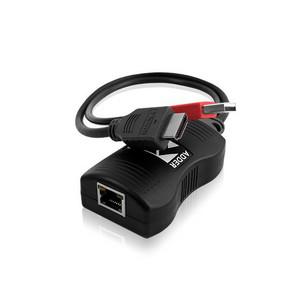

ADDERLink DV100
Line powered HDMI digital video extender over a single cable
ADDERLink DV100 is an easy to install, highly compact video extender system that can transmit an HD video stream with audio over a single CATx cable. This enables you to locate your media playback hardware in a secure and temperature controlled environment. Thus your valuable systems are kept safely away from the display point environment whilst maintaining precisely the same user experien
ADDERLink DV100 is ideally suited to the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industries.
Pixel perfect digital video
ALDV100 uses an uncompressed communication system whereby the pixels of every frame are sent without loss. Resolutions up to 1920x1200 @60Hz (WUXGA) are supported. Additionally, the High-bandwidth Digital Content Protection (HDCP) of the HDMI standard is supported.
Up to 50 meters over a single CATx cable
Video, audio and power all pass along a single cable, providing a maximum of 50 meters extension. The actual achievable extension distanis dependent upon the CATx cable type used and the number of connection breaks for patch panels and wall plates. Please see the table on reverse for details.
Highly energy efficient - No external power supplies are required
The AdderLink DV100 is designed to be highly power efficient, using less than an eighth of the power required by some competing systems. By harvesting power from a standard USB socket, no external PSUs are needed and henthe support infrastructure required is kept to an absolute minimum.
Digital audio
Supports eight channels of HDMI audio. Mix-n-match The whole AdderLink DV family of extenders share a common advantage of cross connection. The HDMI transmitters (ALDV100T) of the family can seamlessly be connected to the DVI-D reivers (ALDV120R) and viversa.
EDID management
The system has intelligent EDID management to allow the true characteristics of the display to be passed back to the computer.
Plug and Play
AdderLink DV100 extenders are delivered in a zero confi g state so you can connect their two units and start working with them straight away. There's no need for drivers or software to be installed.
Built to last
Adder Technology have a well-earned reputation for creating products that perform well and stay the course. AdderLink DV100 is no exption and features tough, yet lightweight ABS enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their performancharacteristics.
Specifications
Hardware compatibility
All computers with HDMI connections
HDMI interfa/strong>
The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920x1200) @60Hz and 24 bit color depth.
with redud blanking
Software compatibility
All known operating systems
Audio
The system delivers eight channels of HDMI audio with sample sizes of 16, 20 or 24 bit at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz.
Computer connections at transmitter (TX)
HDMI type A male, USB type A (for power only)
Display connections at reiver (RX)
HDMI type A male
Physical design
Injection moulded ABS cases:
45mm / 1.8'' (w) x 63mm / 2.5''(d) x 21mm / 0.8''(h) with 30cm / 12" pigtails. Weight 250g / 0.6 lb per pair.
Power
USB powered, 5VDC -2.5W for both RX and TX units combined.
Operating temperature
0 to 40ºC / 32 to 104ºF
|
Technischedaten
Approvals
Important extension distanInformation
Recommended cables are CAT7 shielded foiled twisted pairs:
Daetwyler 7702 Flexible patch cable
Daetwyler 7120 Bulk cable
Category 6a (or better) shielded twisted pair cable must be used to connect the transmitter and reiver units in order to maintain complianwith radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbans.
